Reverse L Pad Calculator – Easily Find Attenuation For Tweeters

Need to figure out how much your L-pad or speaker resistors are reducing speaker volume?

My reverse L-pad calculator will let you easily find the decibel (dB) attenuation using only the resistor and speaker Ohm values. Simple & clear instructions are provided.

I’ve also added a handy power rating function and lots of information and tips. For new designs, you can use my standard L-pad calculator.

Note: Javascript must be enabled in your browser to see or use the tool.

REVERSE L-PAD CALCULATOR

reverse L pad calculator section image

HOW TO USE THE REVERSE L-PAD CALCULATOR

Input your values:

  1. Speaker impedance (Ohms): This is the Ohms rating for the speaker the resistors are connected to.
  2. Resistor values, in Ohms: These are the series resistance (Rseries) and parallel resistor(s) (Rparallel). For a simple series resistor, just enter Rseries value and ignore the Rparallel input.
  3. OPTIONALAmp/stereo maximum power: You can see the worst-case power ratings for the resistors needed at full input power. The calculator will display how much power each resistor will dissipate along with the power supplied to the speaker.

Enter whole numbers (2, 5, etc.) or decimal values (6.3Ω, etc.) for Ohms as needed. If using the power option, use the RMS or continuous power rating in whole Watts for your amplifier or stereo. “Peak” or “maximum” ratings are misleading and will give the wrong results.

The reverse speaker resistor calculator will output:

  • L-pad option: The decibel (dB) drop for the speaker and the total L-pad resistance seen by the amplifier or etc.
  • Series resistor option: The dB drop at the speaker due to Rseries and the total speaker Ohms load.
  • Power option: Power, in Watts, across the L-pad or series resistors and delivered to the speaker at maximum input.

How does an L-pad speaker attenuator work?

What is tweeter attenuation diagram

An L-pad network reduces the voltage & power to a speaker, reducing its volume output. This is usually done with either fixed value resistors network or an adjustable L-pad you can buy. Both do the same thing but adjustable L-pads use a potentiometer (variable resistor) to make increasing or decreasing speaker output easy.

In an L-pad network, a series resistor reduces the voltage the speaker receives. A carefully chosen parallel resistor is connected to the speaker so that the total Ohms load seen by the stereo or amp is the same as the speaker itself.

Speaker sensitivity matching basics

Tweeters typically have a higher sensitivity (volume output rating for their power received) than woofers and midrange speakers. They’re more efficient for several reasons, one of which is their smaller cone or dome, lower mass they have to move, and so forth.

Woofers (especially ones with a heavy, stiff cone) require more electromechanical force, and therefore more power, to move the cone and produce sound. Because of their higher output, tweeters can sound too “bright” or “harsh” due to our ears being more sensitive to higher frequency audio signals.

You can say that in many cases woofers or midrange drivers and tweeters are mismatched. Let’s use a common example when building a 2-way speaker system:

  • Woofer driver efficiency: 87 dB @ 1W/1M
  • Tweeter driver efficiency: 92 dB @ 1W/1M

That’s a difference of roughly 5 dB depending on how they’re measured. Although 5 dB isn’t a huge difference, it can have an impact on the sound and make tuning your system harder. Also, because speakers don’t have a perfectly flat frequency response, there are bound to be some “peaks” in the output which you’ll hear on top of the difference already there.

Taming a speaker that’s too bright can make a nice difference before thinking about using a fancy equalizer or other sound adjustments.

Why not just use a series resistor?

A series resistor can be used to reduce speaker volume in some cases. However, the problem with adding a series resistor alone is the total speaker load seen by a crossover will increase.  This change of speaker Ohms load causes crossover shift, resulting in poor sound.

That’s because a speaker crossover is designed for a specific speaker impedance to be connected. Increasing the speaker load (total speaker Ohms) affects the frequency behavior of capacitors and inductors in a crossover, causing the original crossover point to change.

Let’s say we have a speaker crossover designed for 8 ohm speakers:

  • The normal crossover frequency at 8 ohms is 3,500 Hertz.
  • Inserting a series 8 ohm resistor to drop it by 6dB would give a total of 16 ohms. The crossover frequency would fall to 1,750 Hz!

The cutoff frequency will shift (move), meaning there can be unwanted gaps in sound due to their no longer being an overlap between the speakers.

You can remember this rule of thumb for speaker crossovers – the crossover frequency changes inversely with the speaker Ohms load:

  • Increasing the speaker load lowers the cutoff frequency.
  • Decreasing the speaker load raises the cutoff frequency.

By using formulas to create an L-pad, we can have the best of both: we can reduce the dB output of a speaker and still maintain the same speaker Ohms load an amp, stereo, or speaker crossover needs.

Using multiple resistors in parallel, series, or series-parallel

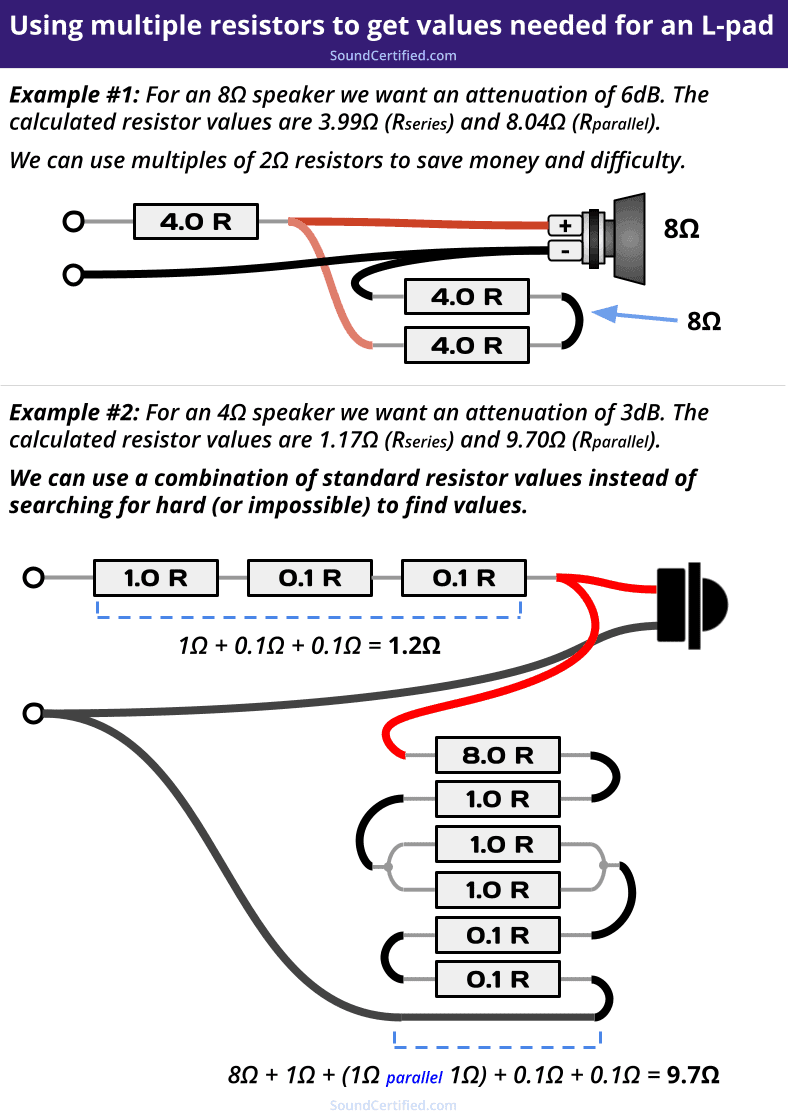

L-pad diagram showing how to add resistor values

Series-parallel resistor example
In the example shown above, a series-parallel-series arrangement is used for the Rparallel resistor value.

We need a 9.7 Ohm resistor which you won’t find anywhere – what can we do? The great news is that we can use easily found standard part values to get the same result:

8Ω +1Ω + (1Ω || 1Ω) + 0.1Ω + 0.1Ω
    = 9Ω + (1Ω/2) + 0.2Ω
    = 9Ω + 0.5 + 0.2Ω
    = 9.7Ω

*Note: The symbol “||” can be used to represent “in parallel” for engineering math purposes.

Here are some helpful tips for building an L-pad or working backwards from existing parts values:

  • It’s difficult – if not impossible – to find exact resistor values for specific parts values. Manufacturers sometimes use multiple resistors that can be added in series, parallel, or series-parallel to get the total Ohms value needed.
  • It’s much easier to shop for standard resistor values and just buy multiples you can use to get the same result.
  • Power resistors are often cheaper in quantities of 2, 4, or 5, and so forth. As power is divided among the resistors, don’t be surprised if they’re of a lower power rating versus using a single one.

In my experience, it’s a lot easier to use a combination of resistor values instead of spending time and effort hunting down specific part values. So when working in reverse from an existing L-pad or other speaker resistor design, be aware of what you might run into.

If you’re modifying an L-pad or building your own, a great idea is to use a project enclosure like an ABS plastic project box. Those can be found for a good price from places like eBay, AliExpress, and others.
