The Only Alpine KTP-445U Review You’ll Need: A Tiny But Amazing 4 Channel Mini Amp

Sometimes getting good sound can be really tough – most especially if you have limited space. And it’s a shame, too, because often that means you’ll have to do without.

My, how things have changed!

This little power pack of sound is a modern-day solution to a decades old problem – getting great sound in a tight space. In my Alpine KTP-445U review I’ll provide a detailed an honest review of this fantastic like amp.

Alpine KTP-445U basics

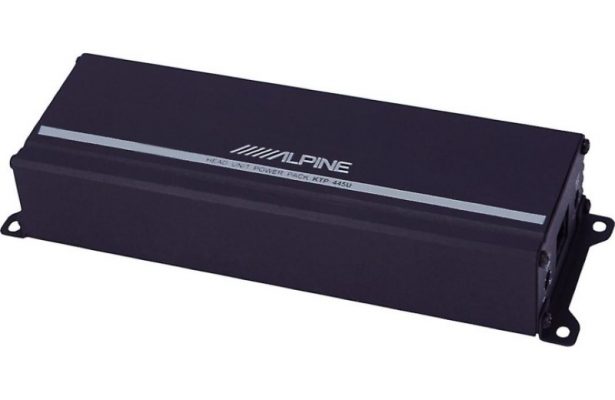

Image of Alpine KPA-445U amplifier angle viewIn case you haven’t noticed yet, I’m a big fan of this little guy – and very happy with what Alpine has come up with! I don’t normally expect much from miniaturized amplifiers, but in this case I can honestly say I’m impressed.

First off, we need to set the stage by understanding what this little amplifier is and isn’t. It is not an end-all solution for the best audio quality money can buy. Let’s be realistic – you cannot get “perfect sound” in an incredibly tiny package for less than $150.

When it comes to sound, there are always compromises that must be made. It’s important to have reasonable expectations. Any good engineer will tell you the same.

What to bear in mind…

Also, it’s important to remember that as I’ll be explaining below, this is a class D type of amplifier. Class D amps have several pros and cons to be aware of (which I cover in detail). It’s important to remember this when you compare it to other amplifiers you may be thinking about buying.

I’ll be reviewing it based on my extensive knowledge of the technology and the amp both as an engineer and an installer. Also, I’ll be very fair – and very detailed – when I make comparisons to bigger and more expensive amplifiers.

Behind the technology: understanding the KTP-445U amplifier design

In only the last several years class D audio amplifiers have become one of the hottest audio technologies in the audio world. This modern technology has improved greatly since the first class D amplifiers hit the market years ago. I’ve found that despite this many brands still leave a LOT to be desired. Unlike the KTP-445U I have been very disappointed by some I’ve tried.

What is a class D car amp?

Simply put, audio amplifiers are all based off on one or more basic “classes”, or categories that classify the type of design they use. Despite what you might see thanks to advertising, a car amplifier class always fits into one of 3.

These range from Class A (fantastic clarity and ultra-low noise specs, but expensive and a power hog) to Class A/B and now class D. For the most part, any other kind you might run across is just a variation of one of those. (For a “class T” amp is still a class D – that’s just marketing).

Class D amps were once only used for subs but now are mainstream

Until recent years, Class A/B amplifiers were the most common because they’re cost-effective, relatively simple in design, and don’t waste as much power as Class A designs do. Also A/B amps provide low distortion and high power levels for a good watt-per-dollar value.

Despite their good points, conventional (A/B) amplifiers waste a lot of electrical power which is turned into heat rather than power to drive speakers. Today’s amps are still somewhat bulky and heavy due to the large metal body needed to dissipate the heat created.

A class D car amp is a newer type of amplifier technology used to produce audio power more efficiently.

How do class D amps work?

Diagram how a class D switching amplifier worksA Class D amplifier works by “modulating” (chopping up) the incoming audio signal and switching the transistors used to amplify it on and off incredibly quickly. This results in a fantastically efficient design without huge amounts of power being turned into heat like designs from the old days!

Class D amplifiers are based on a switching circuit design approach. This means the design modulates – or transforms – the incoming audio signal by chopping it up into a series of on-and-off waveforms as the input signal is received.

This is used to switch power-conducting transistors on and off thousands or hundreds of thousands of times per second. Older audio amplifiers (like class A or class A/B) conduct electricity nearly all the time they’re on.

While A/B type amplifiers are about 50-65% efficient, Class D amplifiers can achieve an incredible 85-90% efficiency!

Because of this the amount of power being consumed by a Class D amp is greatly reduced – resulting in no need for a huge, heavy amplifier body or lots of heat being produced. This was a huge step forward in technology.

Fun fact: Some bare-bones miniature class D amps are smaller than a pack of cigarettes!

Additionally, electronic component sizes have evolved to make these amps smaller and smaller. The decades-old problem of “How can I fit an amplifier into a tiny space in my vehicle?” is now just a bad memory.

No longer do you just have to settle for a weak 15W per channel stereo head unit. You’re now able to get many times the sound in a package that’s far smaller than anything imagined possible only 10 years ago.

Alpine vs the competitors

Something you might not be aware of is that there’s a lot of junk out there. Many of today’s car amp brands are no longer selling unique designs of their own. Sadly, many amplifiers on the market today, including compact Class D designs, are rebadged models that share the same internal components and mediocre design and only have minor cosmetic differences on the outside.

Over the years, lower-end brands were bought out by larger companies and exist only for marketing purposes, not for quality.

I’ve even bought one of these competing amps for test purposes (perhaps one day I’ll do a write-up) and was very disappointed with the design & sound quality. Noise levels were unacceptable and upon examining it I realized quickly it was another low-end version of an “amp on a chip” design.

In the audio engineering world, this means shortcuts were taken at the expense of sound quality and performance.

Alpine has relied on its great engineering resources and the KTP-445U is different from the competition because it’s an original and fresh design. I was not disappointed to find it has the trademark Alpine quality and innovation that became my personal favorite over the years.

Also, Alpine doesn’t use misleading power ratings and specifications, unlike other brands. The power ratings and sound quality specifications I’ll go into below are realistic and honest.

This is important to me not just as an installer and an engineer, but because I need to be confident in anything I review and recommend. I know how it feels to spend your hard-earned money on products that disappoint.

KTP-445U features and specifications

Here are some of the most basic specifications you need to know:

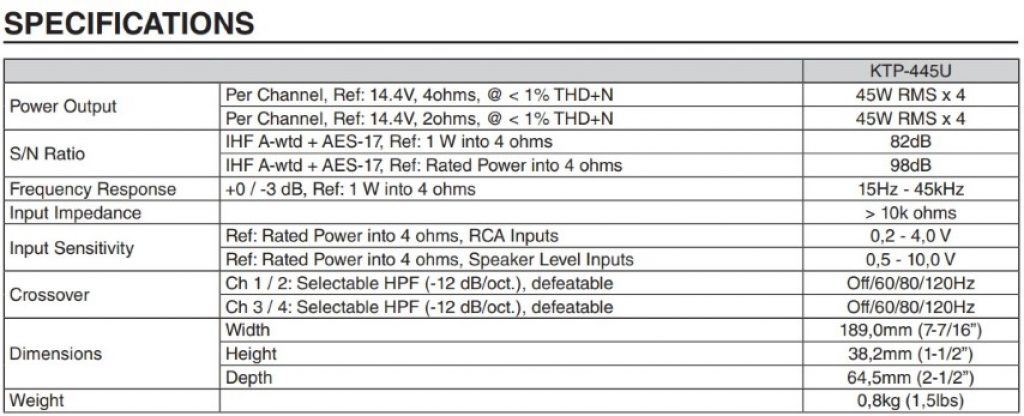

Image of Alpine KTP-445U technical specifications

Note: the KTP-445U mini amp – despite its tiny size and simple design can drive 2 ohm speakers up to 45 watts each. I was honestly impressed and didn’t expect that.


One of the biggest selling points is its size. The amp measures an amazingly compact 7 7/16″ x 1.5″ x 2.5″ (189 x 38.2 x 64.5 mm) in size. That’s smaller than pretty much any comparable amplifier available anywhere in the world today! I’m not kidding – I was expecting it to be much bigger. Basically all other high-quality Class D amplifiers below $200 today are at least 4 x the size of the Alpine.

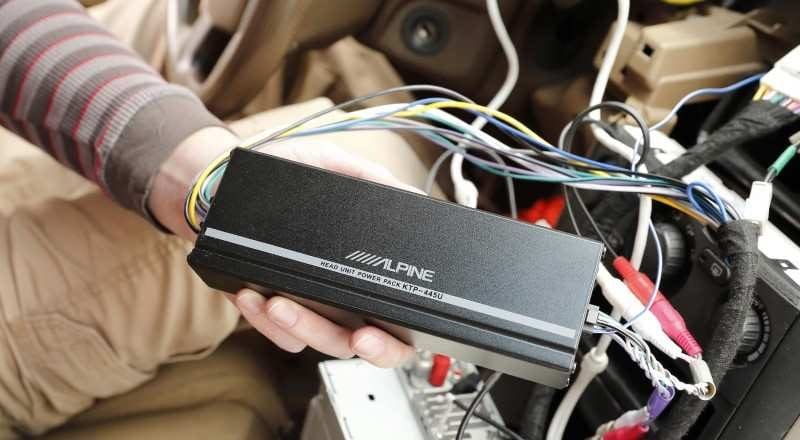

mage of Alpine KPA-445U mini amplifier in my hand

Hard to believe how small it is. An amp with comparable power only a handful of years ago would have been 5 x times bigger. This one is small enough to hold in your hand!

Built-in high-pass crossovers

Originally I had expected the amp to be a “plain Jane” amp with NO features whatsoever, but it turned out I was wrong.

The amp, to my surprise, includes optional high-pass filters with selectable frequencies for the high-pass feature ( 60Hz, 80Hz, or 120Hz) to allow you to cut off speaker-distorting subwoofer bass if you like. Of course, you can always switch if off and run your speakers in “full range” mode if you like, but I normally prefer to block the lower bass frequencies.

My custom-installed 6.5″ speakers can’t handle the lower bass frequencies (they don’t do well below 50 Hz or so, so 60Hz is pretty close) so that’s very important to me.

High and low level inputs

Of course, I didn’t expect the Alpine to disappoint, but again they’ve done a great job in the design. The amp can work with both aftermarket head units via the or RCA inputs OR  speaker-level inputs from a factory stereo! In other words, you can use the KTP-445U to get a more powerful and better sound even if you have a factory-installed stereo in your vehicle.

The included color-coded wiring harness makes it easy and it’s a feature I’m sure a lot of buyers just like you will appreciate.

Quick tip: When adding an aftermarket amplifier to a factory system and connecting to speaker-level outputs, be sure to plan for getting some small-gauge speaker wire. Plan for enough length to go from the speaker wiring connections to the amp (and back again, if powering factory speakers).

One thing I’ve learned in my years of car stereo installation experience is that the ability to connect to factory-installed stereos is a huge plus. The Alpine can be connected directly to factory speaker wiring to “tap off” and get a good audio signal to feed into the amp.

While not as good as being fed from an aftermarket head unit via the RCA inputs, it’s still a great option and in my experience, when done correctly, still sounds clean and there’s very little distortion or breaking up at higher volumes.

You can also disconnect the factory speakers once the KTP-445U is connected to avoid any distortion issues if that’s a concern for you.

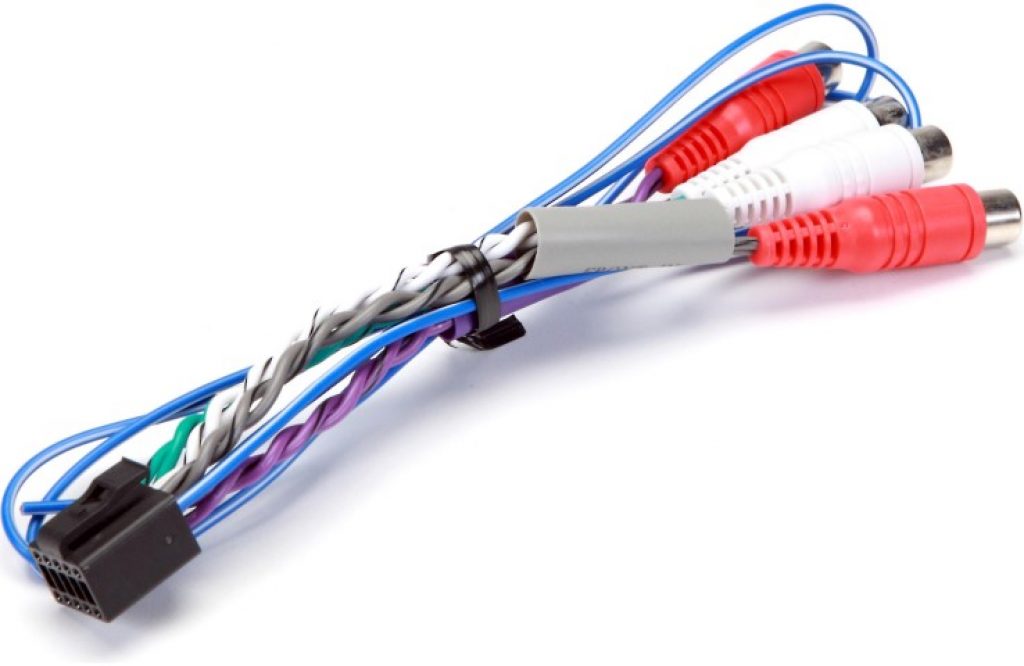

Image of Alpine KPA-445U mini amplifier input harnessThe included signal input harness allows connecting both RCA (low-level) inputs or speaker-level inputs to the amplifier easily. Inputs are color-coded and explained clearly in the owner’s manual. A similar harness is used to connect to the output (to connect to speakers you’d like to use)

There are switches for audio controls on the bottom of the amp if you need to choose speaker level inputs or change crossover functions. As a bonus, even if you’re using 4 speakers and only have a 2-channel input, the amp can provide a signal to all 4 outputs. You won’t have to buy a pair of RCA Y-adapters.

To bridge the amp, you’ll also need to set the 2/4 ch. input switch to 2 channel as well.

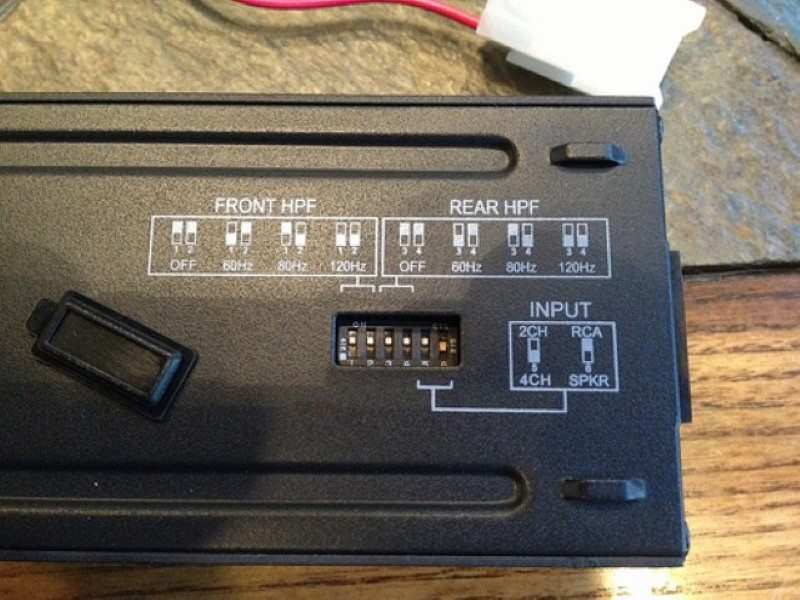

Image of Alpine KPA-445U mini amplifier control switches

Selectable option switches on the bottom of the amp allow you to adjust the crossover functions or split a stereo input into 4 channels. Also, this is where you must select the audio source before powering up the amp.

Front and rear gain controls

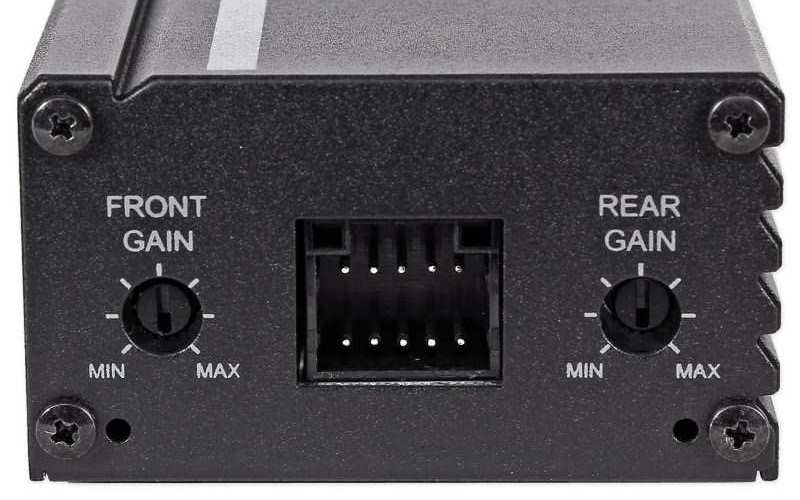

Image of Alpine KPA-445U mini amplifier controlsSeparate front and rear gain controls allow adjusting the amplification level depending upon the input signal strength you have. Speaker-level inputs, for example, might require turning it down, while RCA-level inputs may require boosting it a bit. It’s highly dependent upon what kind of stereo you have. In either case, it’s easy to adjust. The KTP-444U can accept up to 4V RCA inputs which are considered a “higher end” signal strength for aftermarket units.

Not too much I have to say here – the front and rear controls are easy to use and easy to adjust. Also, the gain controls “feel” good because good quality components (potentiometers, which are just adjustable resistors) are used on the circuit board. This means that when you adjust the gain levels it won’t change over time and will have a good “feel” when you turn them.


The amp can deliver up to 45 watts per channel into both 4 or 2-Ohm speakers, which is surprising because most miniature amps in my experience cannot handle 2 Ohm speakers. This means you could add extra speakers in parallel (to a degree) if desired.

It’s important to understand that 45 watts isn’t enough for extreme sound levels or to drive large woofers if that’s your goal. This amp isn’t designed for that.

I’d estimated with a good set of efficient speakers, however, you can get close to around 100dB of clear sound before it begins to give out due to its limits. For most people with normal listening habits, it’s plenty of power and you need not worry.

For reference, it may be helpful to know that most in-dash car stereos can provide only around 15W-18W RMS or so per channel of usable power.

Sound quality

For me, sound quality is extremely important.

It seems like every little bit of irritating distortion or poor musical reproduction I’ve heard grates my nerves.

I’m happy to report the KPT-445U has great good sound quality and is very impressive for a tiny amp! If you recall what I mentioned earlier, this is a Class D amplifier. The benefits of Class D amplifiers are a fantastic size, great efficiency, and a lower weight, but one of the drawbacks is reduced sound quality.

I can say with certainty (and don’t just trust me on this – check the multitudes of other happy reviews) that the sound quality is very good. Remember when I mentioned earlier about how I bought another brand of car amplifier and was disappointed?

It was because the noise levels (the noise I heard when no music was playing) was far too high compared to the many amplifiers I’ve installed and listened to over the years. Not so with Alpine – they’ve done a great job in minimizing noise.

I can say I was pleasantly surprised. I came into my review of the KTP-445U expecting an “ok” experience but was honestly very impressed with what Alpine has done.

Here’s an excerpt from the company themselves:

In order to ensure that Alpine sound quality is heard at your ears, we’ve created a platform that offers an unbelievably low noise floor, taking extra care to ensure a clean signal path, with no extraneous interference. The end result: The Power Pack boasts 1 Watt Signal-to-Noise Ratio of 82dB or better.Alpine Electronics

In my opinion, this says a lot. Why? Because it takes additional engineering time and manpower – in addition to planning – to make the effort to make better sound quality a design goal rather than a forgotten number on a spec sheet somewhere.

I’d much rather pay a bit more for something I know is designed right from the beginning and I know sounds great rather than just made to be “ok” and barely passable.

Quick tip: If you have to increase the gain level greatly it also increases your chance of hearing the base noise level in any amplifier, including this one. For best results, the amp should have a good, strong signal so that the gain can be turned down, resulting in the cleanest output possible.

And by the way, for you spec nerds like me, the specs on this little amp are great. According to the company, the Power Pack distortion actually decreases at higher frequencies, resulting in a clean and clear signal where your ear is most sensitive to distortion (less than 0.03% THD+N @ 1W, 1% THD+N at rated power).

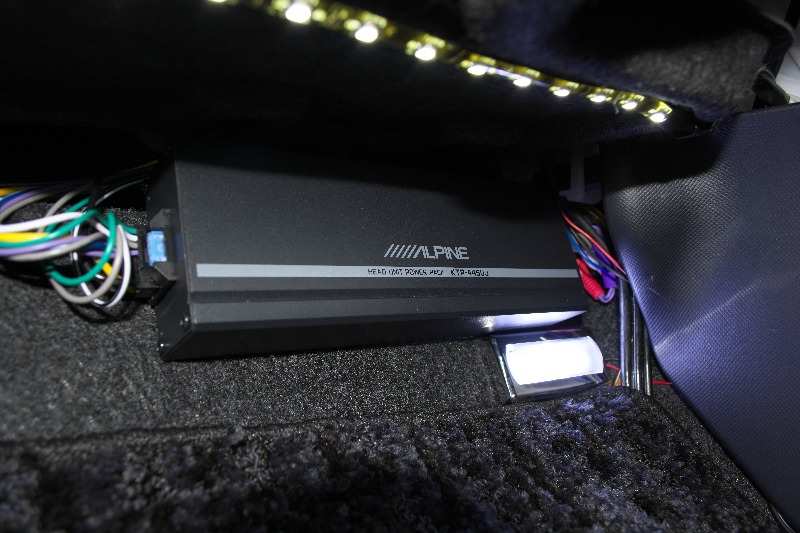

Alpine KTP-445U under seat installation

Great for installation under seats and just about any small space you can think of.

The great thing about the size is that you can fit it in incredibly small spaces which were unheard of years ago. A great example is some of today’s vehicles in which there’s extremely tight space inside the dashboard, perhaps beside or behind the current stereo.

It’s a great solution to the most difficult installation problems which years ago would have required either a ton more money to be spent by customers or unfortunately caused some people to just “give up’ as there weren’t any other options.

It’s also a great fit for boats as well but you’d need to ensure it is protected against corrosion and exposure to the air and saltwater since it’s not marine rated. You can mount the tiny powerhouse by using the included zip cable ties to attach it to the nearest available wiring or mount it permanently using the included brackets and self-tapping screws.

Don’t forget that because of its light weight you could also use double-sided adhesive tape or Velcro if desired for convenience.

Note: Because it is so efficient and draws less electrical current than traditional amps, you won’t need to get a heavy-gauge wire installation kit and run extra wire. It’s possible to connect it to a nearby 12V supply from your car stereo, for example.

Accessories included with the KTP-445U

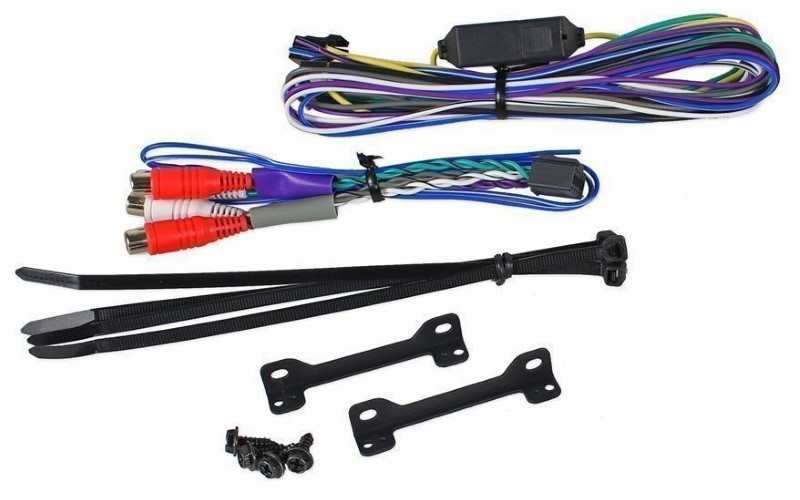

Image of Alpine KPA-445U included items

  • Mounting brackets (2)
  • Self-tapping screws (4)
  • Cable ties (2)
  • Required wiring harnesses

I would suggest getting a few inexpensive items to make sure you’re better prepared for installation, such as:

  • A roll of speaker wire
  • 14 or 16 gauge power and negative wire for installations placed further way
  • Wire crimp connectors (“butt connectors”) and a crimp tool
  • A small bag of 6″ or 8″ zip wire tie

Bridging the amp

Need more power? Amazingly – and to my surprise – it’s not a problem with this amp.

Just switch the 2/4 channel input switch to the 2 ch. input mode. Then connect the output speaker wiring in bridged mode and you’re done!

You’ll have 90W RMS per channel of high-quality sound at your disposal. Honestly, I didn’t expect that for an amp so small, but the engineering quality made all the difference once again.

Just one more reason I’m impressed with it.

KTP-445U vs KTP-445A

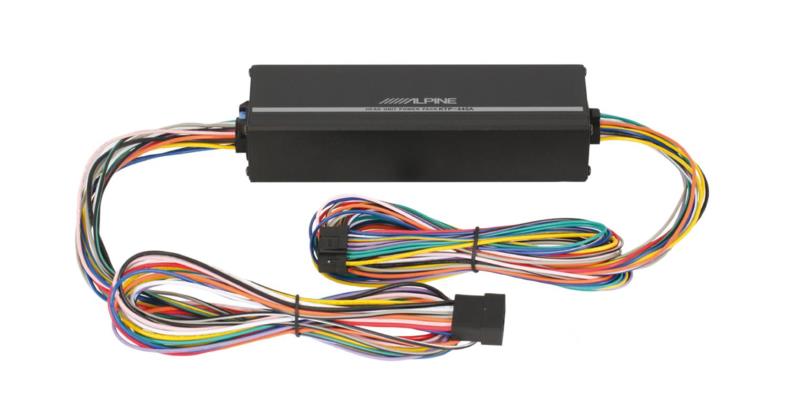

Alpine KTP-445A image

The KTP-445A looks very similar to the KTP-445U. However, it’s designed specifically for Alpine head units 2005 and later, not for RCA or high-level inputs from others.

When shopping it’s important to be aware of the KTP-445A model as it can cause a bit of confusion and comes up in search results.

The KTP-445A is a model of the KTP-445U (where “U” stands for universal; “A” stands for Alpine head units) designed only to work with Alpine model car stereos. The wiring harnesses included don’t allow using RCA connectors or standard speaker-level inputs.

Aside from that, both share the same basic design and performance.

There are a few drawbacks to know…

I would have liked to have an optional low-pass crossover feature in addition to the high pass design. Perhaps it was a cost-cutting or design compromise decision that had them remove it. I’m not sure.

I have somewhat mixed feelings regarding the location of the switches used to control sound options. They’re located on the bottom, whereas ideally, they’d be accessible from the side or top. But ultimately that’s a minor complaint.

Review score & summary

All in all, in my opinion, the KTP-445U is a wonderful little 4-channel amplifier with great sound quality. It’s truly a dream come true if you want great sound but have especially limited space.

It’s not for those who need extreme power and volume levels. You can’t drive subwoofers or very high-volume speaker systems with this amp, but what it does it does well!

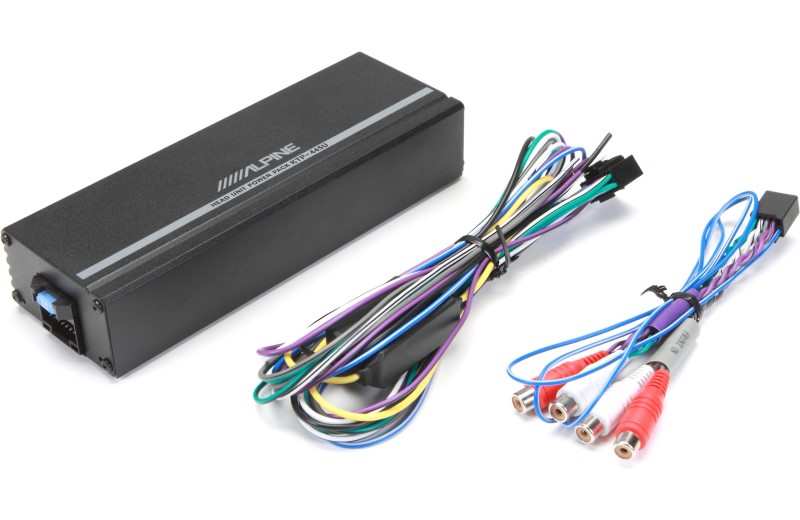

Alpine KTP-445U review featured imageHead over to check out the current price and see the fantastic buyer reviews at Amazon.

  • Quality - 9.5/10
  • Sound quality - 8.7/10
  • Installation ease - 9.5/10
  • Features - 7.5/10

A well-designed and great sounding miniature car amplifier. One of the best compact amps I've seen.

Alpine has done it again with their approach to getting the most power and sound out of a tiny package. It’s a great upgrade for weak aftermarket or factory stereos. Thanks to its design it’s a great general-purpose 4-channel amp that can fit a wide variety of installation and audio system needs. You’re paying a few extra dollars for better sound and better design – and that’s exactly what you’ll get. You won’t be disappointed.


  • Amazingly small size!
  • Great sound, low distortion, and low noise design
  • Can handle 2 ohm speakers (4 channel mode)
  • 4 channel outputs
  • Bridgeable to 90W RMS x 2 channels
  • Selectable 2/4 channel input switch (no Y adapters required)
  • Speaker level inputs
  • Installation accessories included
  • Great power: 45W/channel
  • Built-in optional high-pass crossovers
  • Simple installation / no large wire required


  • No low-pass crossovers
  • Option switches are located on the bottom as opposed to top or sides
  • Could use more zip ties in package

About the author

Marty is an experienced electrical, electronics, and embedded firmware design engineer passionate about audio and DIY. He worked professionally as an MECP-certified mobile installer for years before moving into the engineering field. Read more »

Your comments are welcome.
  1. Dear Marty

    I have a specification question.

    Do you know the KTP-445A line-in level, 4V or 5V?
    The Alpine receiver CDE-175BT Preouts RCA is I think 5 Volts ?
    Somewhere Alpine device might match together.



    • Hi, I think it’s probably 4V for an RCA connection & 10V for speaker level inputs but you may want to check with Alpine to verify that. If you’re worried about the signal levels being mismatched since the “A” model isn’t adjustable like the “U” model, you’d want to get the “U” model instead.

  2. Hi Marty,

    Hope to get a response! Some 4 door jeep wranglers have an Alpine subwoofer in the trunk floor, mine didn’t come with but I’d like to retro fit.

    The subwoofer has 4 channels @ 2ohms. Do you think this little alpine amp could drive that subwoofer? If curious the mopar sku is 68223349AD. Thank you so very much in advance!

    Jim K

    • Hi, I’d need to know the specs on the Alpine subwoofer like the size and RMS/continuous power ratings. This amp *might* be able to drive it decently, but it greatly depends on the type of enclosure it’s in.

      You could probably get “ok” results but personally, that’s not something I’d recommend especially in a Jeep. If it’s a smaller subwoofer like 8″ or less it’s worth trying. Best regards!

  3. Hi Marty, wondering if you recommend using a power pack with the newer Alpine Halo head units (specifically Halo iLX-F511A?). These claim 4 x 50w, but it is unclear if it is peak power, or RMS. I believe it may be peak and that the RMS is the typical ~15w. I am looking into augmenting the system with a compact power pack if the boost is welcome, but unsure if a 4 x 45w RMS amp will make any substantial difference to this set up. Cheers, T

    • Hello there. Yes this head unit appears to have an integrated class D amp already so it should be about 50W continuous/channel. So ideally you won’t need an external amp (but that of course doesn’t apply to using a subwoofer, you’d still want an amp in that case).

      If you have typical listening needs it should work nicely. If you want to push speakers harder and louder however I’d add an amp with more power (say 75W/channel). Best regards!

  4. Thanks for the review! I’m looking at buying the OEM sub from a higher trim Tesla model 3 and installing it in mine. The OEM amp won’t work due to a firmware lock, hence the Alpine. The Tesla sub is labelled “2x80w – 2x4ohm”, and others have used this Alpine to power it. Since there isn’t a dedicated sub output from the car, folks are tapping the door speakers. Your review mentions the integrated high pass filter and omission of a low pass. Is an external low pass ‘a thing’, are you going to kill your door speaker(s) by putting a cap in parallel, or over thinking it? Thanks for any thoughts!

    • Hi Ethan. To answer your questions:

      Passive (non-powered) low pass crossovers aren’t used very often for subwoofers because of how large of an inductor it takes in many cases. Also they’re not as effecient or as good sounding electronic crossovers due to not having as steep of a cutoff as electronic ones. Capacitors are normally used for high-pass, not low pass when in series with a speaker.

      One thing to consider is using an compact class D amp similar to the Alpine but with low-pass crossovers already provided. One like the NVX VADM4 is stil pretty small but has crossoovers in addition to high-level inputs built-in. You don’t really need to use a large gauge power wire if you’re not driving it to its full rated output.

      If you need to use the Alpine, one way around this issue is to use a line-level converter from the tapped speaker wire signals to get RCA outputs, then go to a cheap electronic low-pass crossover. You can find those on eBay, etc. Usually under $25 if you look around. Here’s an example of one on eBay.

      (These are like smaller versions of the traditional front/rear/sub electronic crossovers.)

      Hopefully that helps!

      • Thank you for all the detail! I appreciate your help, and hope all these keywords will help others with a similar question find your article.

        Do you think the juice is worth the squeeze to do one of those low pass options? The benefits of the Alpine are how well it’s rated by folks like you, and it’s demonstrated to work in this use case (oem Sub + retrofitting a base, no pun intended, model 3 trim).

        I don’t need to hijack this for just me, so if there’s a more generic answer that might help anyone considering the Alpine for lower powered subwoofer use, go for it. Thanks!

  5. Hi Marty,
    Does the instalation of this amp increases the sound quality, or only increases the volume?
    Best regards! great review

    • Hi Ricardo. Generally speaking, it can do both versus the low power output of a standard head unit. If sound quality is your main goal, then you might want to consider a bigger amp as they’ll have additional provisions that help in that regard.

      For example, one of the mid-priced 2 or 4-channel amps by Alpine, Pioneer, etc., are still relatively compact but offer good sound & power. Best regards!

  6. Hi Marty, great review! I recently picked up an Alpine iLX-407 to install in an old truck. Looking forward to the small size increasing space for routing other stuff under the dash. They talk about using the KTA-450 with the iLX-407, but I had a KTP-445U laying around from another project that never happened. I’m also planning to use a KTP-445U with an Alpine PWE-S8 compact subwoofer. So my project is a small 1950 truck, and the cab is tiny. What should I look for in speakers to match with the KTP-445U? We had previously mounted some cheap 6×9 in the foot kick panel area and small 5-1/4″ speakers in the door. I’m not married to the sizes or locations. I’m tempted to remove the door speakers and move them behind the seat. Do you have any recommendations on how to approach finding speakers? I feel like most stuff I’ve found leans toward matching speakers to fit your car and model year, and there isn’t a lot of recommendations for 1950’s trucks.

    • Hi Greg. For older or non-typical vehicles, we almost always cut the sheet metal in the doors of trucks like that. There are more options these days such as speaker pods, etc., but they’re often mediocre for sound unless they’re well-designed.

      You’ll want to fit the largest size (within reason) you can in the doors for the best sound. I normally used a jig saw with metal cutting blades or an electric metal cutting tool for older vehicles like that. 6.5″ or 6×9″, if they can fit, would be a good choice.

      Putting speakers behind the seat is doable but the sound won’t be nearly as good as the front speakers so those are the most important.

      You can however try 6×9″ in pre-manufactured speaker boxes as an easy way to add sound without a lot of hassle. The subwoofer should help cover the lack of bass from the 6×9″ or other main speakers so that’s definitely good to add.

      Basically any decent quality 2-way speakers with good tweeters would be a nice choice – especially those with a cloth or silk dome, metal/metal hybrid, or similar. Mylar (plastic) tweeters are poor for sound quality. If you’re mounting speakers in the doors I would avoid those with paper cones as moisture from rain etc. can affect them over time.

      Hope that helps!

  7. Hi Marty, looking for some help selecting an amp. I have a 2002 Corvette convertible I’ve selected the Alpine iLX-507 and I will be using JBL Club 602C speakers in the doors. The amp is where I need the help between the KTA-445 and the KTP-450. Can you give me what your choice would be between these two amps and why. I would very much value your opinion. Thanks, Chuck

    • Hi, there’s marginal, if any, differences between the two so if you find the KTP-445 to be more affordable, I’d pick that. It’s been around longer so it should be priced better if you look around.

      I think the 450 model may have another mounting option, but nothing worth making the decision based on. Best regards!

  8. Hello Marty, First off excellent article here.. But I’m curious the difference between the speaker and rca settings, and is it impedance? Also, when installing this amp to a 2019 Toyota radio with speaker outs, would I need to cut the rca plugs off, connect the inputs and set the input to speaker? Thanks Chas

    • Hi Chas the difference is the input circuitry used, as speaker level inputs have to greatly reduce the input signal, so that’s not what you want in your case. Don’t cut the RCA connectors off. Use the amp’s RCA inputs and set the option to “RCA.”

      Best regards.

      • Hello again Marty.. Thanks for the signal clarification. Makes sense. However I should clarify, my radio does not have an rca output, its a speaker out on a wire harness. So there’s no way to connect to the alpine provided rca plugs. But are you saying leave the dip sw on rca, with speaker level input. I’ve read this can be used to give more input signal to the amp, but may disrupt the auto sense internal power off feature. Just checking

        • Hi, when you wrote “would I need to cut the rca plugs off” I misunderstood one which item you meant, so pardon the confusion.

          Set the KTP-445U to the speaker level option.
          • Cut off the RCA jacks and connect to those wires per the color codes and twisted (paired) wires.
          • Never connect a speaker-level output to an RCA (line level) input without either an adapter or the correct amp setting being used.

          It’s mentioned in the owner’s manual. Best regards.

  9. Hi Marty,
    I have a 2010 Ford Flex Limited with a Sony sound system non nav unit. I recently purchesed a Metra dash kit to allow me to install my Alpine CDE-164BT head unit into it. I also have the Alpine KTP-445U amplifier as well. I replaced all my speakers with Kicker CS series. I have the 6×8 components in the front and 6×8 coaxial in the rear doors. I also have Kicker CS series 3.5″ in the center dash and rear pillars as well. I’m planning on bypassing my factory amp using my KTP amp, however I have a center channel speaker in the front dash. What would be the best way to keep that center channel speaker going without buying more amps and processors? Can I split the front left and right into it?

    Let me know, and thanks for this review you did.



    • Hi, unfortunately this is always a difficult thing to do especially without a real center channel signal like you’d get from a digital processor. Not having a center channel output on the head unit means you’ll have to combine the left & right somehow to get a mono false center channel speaker.

      The simplest – and more affordable – way is to get a small inexpensive amplifier and bridge two channels to power the center channel. You’ll need to then lower the gain a lot otherwise the center will be too loud. A lower-power stereo amplifier will work fine for this.

      Otherwise it may be best just to skip using the center. There are some older small mono amps like the Alpine MXE-350 which were made just for this purpose but they can be hard to find used (or overpriced). Hope that helps some!

      • Thanks for your reply, I do infact have an Alpine MXE 350 Mono Amp. It’s sitting a box collecting cardboard dust. I was also thinking of using a 4 ohm resistor inline with the center channel (4ohm on positive wire from left channel) not sure if that would work to lower the volume of it a bit ?

  10. Hi Marty

    Great article

    I recently installed some mid-range speakers in my 2006 Volvo xc70 to help improve the sound (Sony XS-FB1621C). I kept the factory head unit as I like the simple interface and oem presentation. The speakers sound good but not as clear or full as Id hoped. I was looking to install this amp to wake them up a bit more. How far should I expect this unit go with cleaning up the sound quality as well as just power


    • Hi Anton. Hmm, well those Sony speakers appear to be capable of fairly good sound quality. The bass response may not be good depending on the vehicle, but if a head unit has good audio quality the sound should be relatively crisp & clear.

      You can get slightly better clarity and volume with an amplifier, but if the head unit can’t provide good sound it’s not going to solve that problem. My recommendation is to get a better head unit as you can get superior sound quality to what you have currently (especially with modern head units with a 13-band EQ or similar).

      Best regards.

  11. Hi Marty

    So I had the 445u hooked up to ilx-407 via Idatalink Maestro powering Alpine S Series 6×5 Components and 6×9 Rear Dash. I upgraded to the ilx-f511 and want to use the power pack still but this time I got the Idatalink HU specific Adapter so I don’t have to splice and connect wires. I don’t want to integrate it with the Idatalink but instead power the speakers directly. So would I use the RCA outputs from HU and connect to 445U and power, ground it somewhere else on my car? Or how would I go about hooking it up directly to my speakers without using the Idatalink? I’m pretty tech savvy and an electrician but I tend to overthink and that always seems to complicate the simplest of things for me. Thank you for you your time and advice.

    • Hi, so from what I see you can use the iDatalink Maestro for the other features and connect the head unit to the KTP-445U via RCA inputs, assuming you’re not using a factory amplifier for anything.

      I can’t think of an issue doing it this way, as the RCA output signals should be independent of the vehicle functions the iDatalink provides. Also it’s generally best to use RCA connections rather than speaker-level inputs to an amplifier for the best sound quality.

      Yes, you can connect power & ground separately somewhere to run to the KTP-445U; sometimes it’s easier to make those connections near the head unit then run the wire over. You would then just need the remote wire connection (amp turn-on lead) which I see the iDatalink should provide.

      Hope that helps!

      • Marty,

        Thanks for the feedback and information. I got everything wired together, heat shrinked my inline connections (horrrible at soldering), and used Temflex Tape to clean up the wires on the Maestro and 445 U wiring harness. Forgot to mention that I’m also running an Alpine R2 W10D4 sub on Alpine S-A60M amp. I have the speaker and amp going out on RCA’s. I set the 445u amp settings as followed LPF @ 120hz an HPF @ 120hz both gains are on the lowest setting, 2ch and Speaker. Have the 445U RCA side and A60M connected to the Maestro Power Ant wire. Now my subwoofer isn’t making any bass but my Amp is on. Did I mess up by choosing Speaker instead of RCA on 445u which is why my sub isn’t working? Also should I change anything on my 445u settings? Or how would you set it up?

        • Hi Marcus I’m not 100% clear on how you’ve connected everything. Could you clarify the following:

          1. I have the speaker and amp going out on RCA’s
          2. Did I mess up by choosing Speaker instead of RCA on 445u which is why my sub isn’t working?

          By #2, did you mean that you set the 445U’s input option switch to “SPKR” instead of “RCA”?

          So basically:

          A. We want to use the RCA inputs for both amps. The KTP-445U’s input options must be set to “RCA” to work correctly. (NOTE: speaker-level inputs and RCA inputs should never be used at the same time.)

          B. If you believe everything *should* be hooked up ok but you’re still not getting sound from the S-A60M, you’ll want to troubleshoot it a bit:

          i. Make sure it has +12V, remote-on ~12V, and ground as expected.
          ii. You can use another signal source like your smartphone’s headphone output or an MP3 player, etc. as a signal source via RCAs to the amp to check for sound.

          Hopefully this helps a bit. Best regards.

  12. Hi Marti

    For this amp, can one get a harness to fit 2022 Isuzu MUX, and do i need to run a seperate power cable to the battery like conventional amps. Hope this is not needed for this unit. Can you guide me

    • Hello Theunis you’ll need to wire it to a positive wire, which can be done someone from the factory wiring if you’re able to find a +12V battery supplied wire. The amp doesn’t draw so much current, so it’s often not necessary to run a large cable to the battery.

      You can then ground it to a clean metal body connection. Sometimes both things (a positive wire and good ground spot) can be found near where the factory head unit is located. Best regards!

  13. Thanks for the thorough review. I’m a car audio newbie considering buying the KTP-445U. I have relatively mid-level gear (a JVC KW-M560BT head unit and 4 6.5″ Alpine SPE-6000 speakers), and I’m a bit underwhelmed by the sound (quality first, loudness second). I assume loudness would improve since this amp is 45 W RMS while the head unit provides something in the 21 W range. Do you think it would also provide a meaningful boost in sound quality?

    • Hi Ben. In the case of a compact amp like the 445U, the sound quality improvement won’t be as much as a standard “full-size” amp, but should be a slight increase in sound quality. With many head units with less power than your JVC head unit, it’s often more noticeable due to the contrast in power levels.

      If improving sound quality is a primary concern for you, a full-sized class D or especially a class A/B amp would offer more improvement. Otherwise, I think you’ll be pretty happy with it, especially given you have a 13-band EQ in the JVC which will allow you to tune the sound some.

      Best regards.

Leave a Comment
